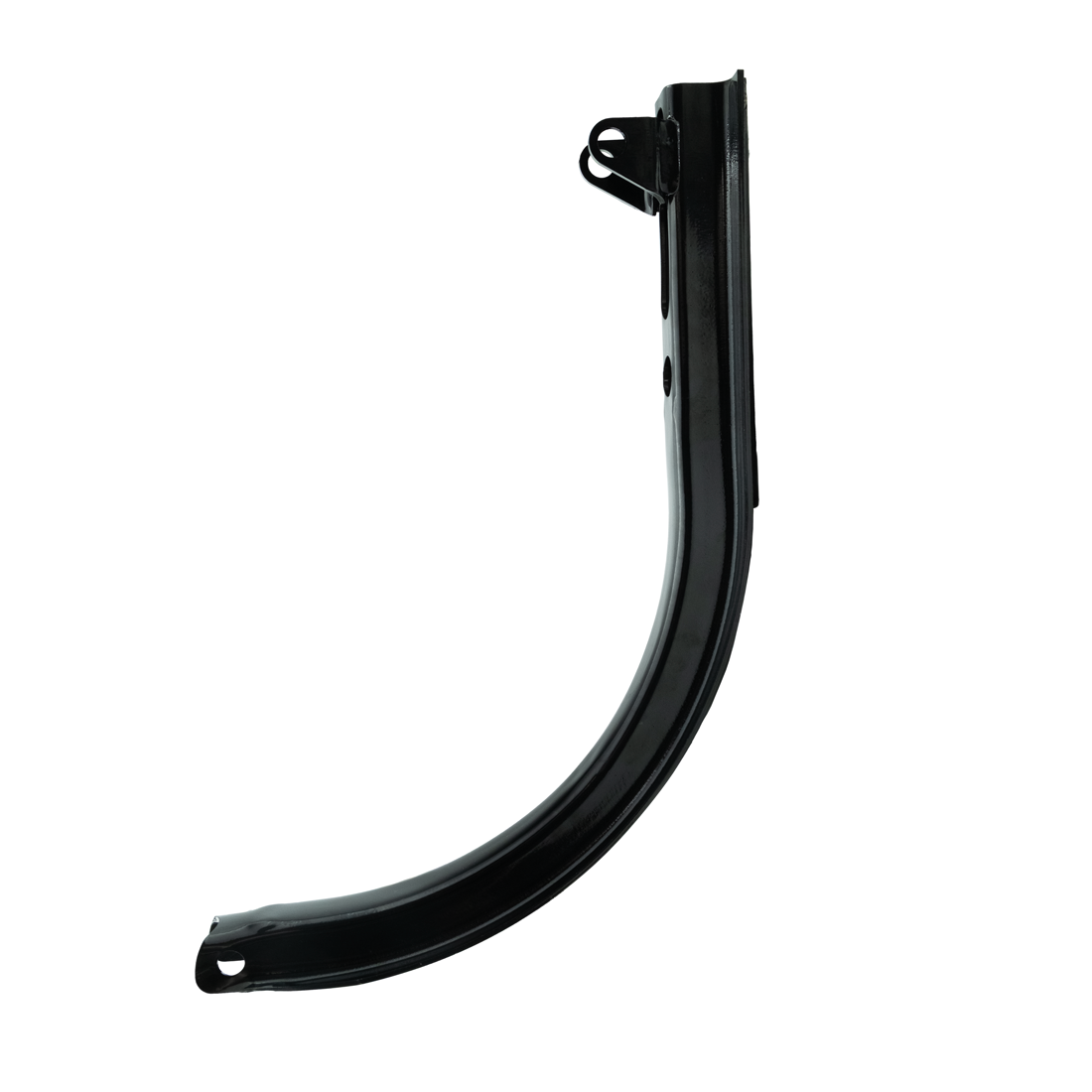

STEEL BRACKET / 77900003
ALUMINIUM ROUNDED
Aluminium Oil Tanks
ALUMINIUM ROUNDED
NO VALVE PLATE
VALVE PLATE AND RETURN FILTER ON TOP
Standarts
BRACKET RUBBER / 77900002
STEEL STRAP / 77900004
STRAP RUBBER / 77900006
FILLER CAP / 88100056
Optional
VALVE PLATE WITH RETURN FILTER
METAL FILLER CAP
CHROMIUM STRAP 77900005
Technical Specifications
| Product Code | H Height (mm) | L Length (mm) | Tank Volume H*W*L (lt) | |
|---|---|---|---|---|
| 77303044 | Ø400 | 350 | 44 | |
| 77303063 | Ø400 | 500 | 63 | |
| 77303082 | Ø400 | 650 | 82 | |
| 77303100 | Ø400 | 800 | 100 | |
| 77303125 | Ø400 | 1000 | 125 | |
| 77303064 | Ø550 | 270 | 64 | |
| 77303083 | Ø550 | 350 | 83 | |
| 77303123 | Ø550 | 520 | 123 | |
| 77303155 | Ø550 | 650 | 155 | |
| 77303202 | Ø550 | 850 | 202 | |
| 77303135 | Ø620 | 450 | 135 | |
| 77303166 | Ø620 | 550 | 166 | |
| 77303211 | Ø620 | 700 | 211 | |
| 77303232 | Ø620 | 770 | 232 | |
| 77303257 | Ø620 | 850 | 257 | |
| 77303154 | Ø660 | 450 | 154 | |
| 77303188 | Ø660 | 550 | 188 | |
| 77303222 | Ø660 | 650 | 222 | |
| 77303256 | Ø660 | 750 | 256 | |
| 77303308 | Ø660 | 900 | 308 |
*Length (L) is customizable. Please contact us for more details.
