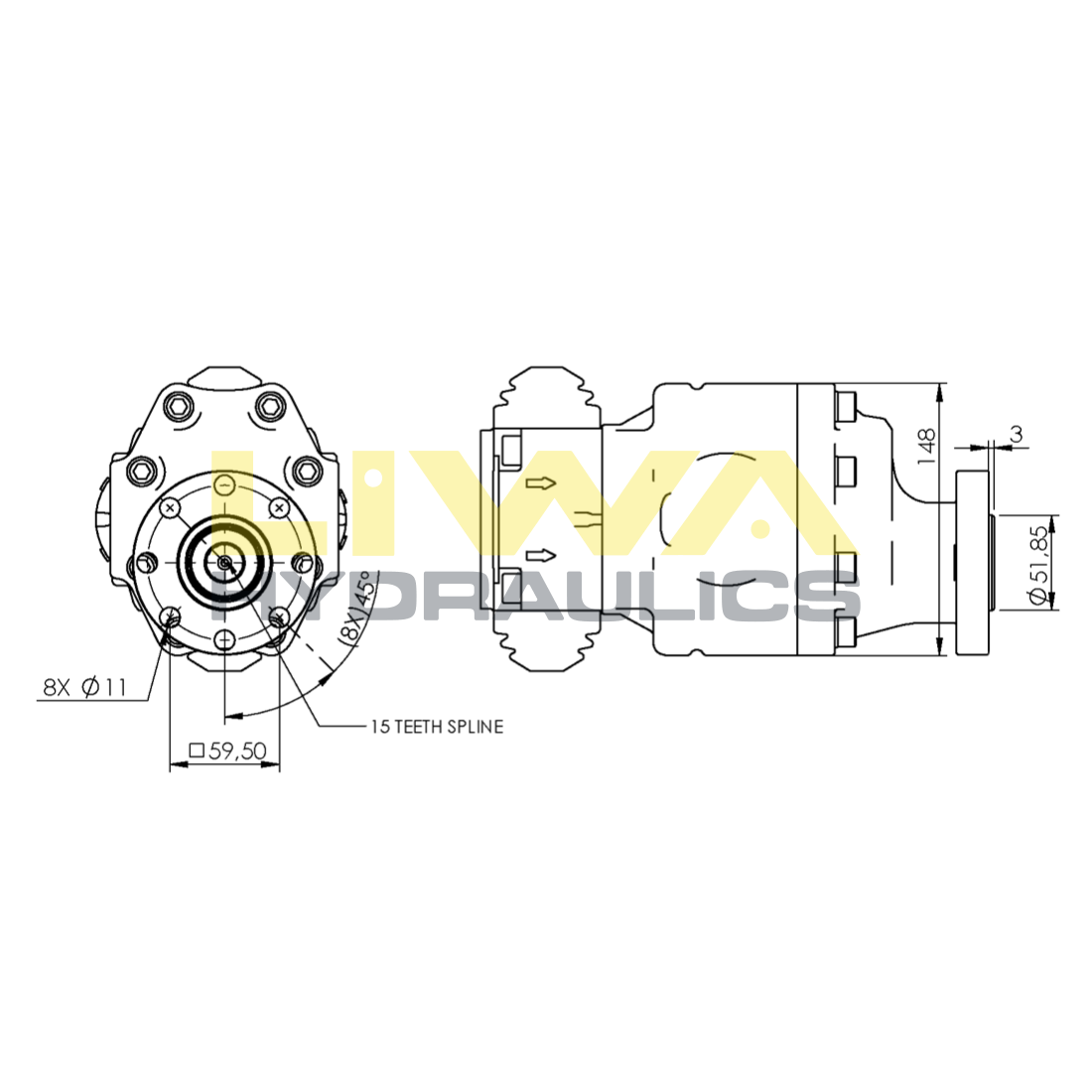

30 SERIES Z15 GEAR PUMP WITH PNEUMATIC CONTROL

Technical Specifications

Product Code	Displacement (cm3 / rev)	Max. Cont. Pressure (%100) (bar)	Max. Peak. Pressure (bar)	Max. Cont. Speed (rpm)	Inlet	Outlet	Direction
22287043	43	270	290	1400	G 1 1/4”	G 1”	CCW Left
22288043	43	270	290	1400	G 1 1/4”	G 1”	CW Right
22289043	43	270	290	1400	G1 1/4"	G 1”	Bi-Directional
22287061	61	220	240	1400	G 1 1/4”	G 1”	CCW Left
22288061	61	220	240	1400	G 1 1/4”	G 1”	CW Right
22289061	61	220	240	1400	G 1 1/4”	G 1”	Bi-Directional
22287082	82	190	210	1400	G 1 1/4”	G 1”	CCW Left
22288082	82	190	210	1400	G 1 1/4”	G 1”	CW Right
22289082	82	190	210	1400	G 1 1/4”	G 1”	Bi-Directional
22287092	92	190	210	1400	G 1 1/4”	G 1”	CCW Left
22288092	92	190	210	1400	G 1 1/4”	G 1”	CW Right
22289092	92	190	210	1400	G 1 1/4”	G 1”	Bi-Directional
