en 40 SERIES TANDEM SAE C (4 HOLES) GEAR PUMP
40 Series Tandem Pumps
40 SERIES TANDEM SAE C (4 HOLES) GEAR PUMP

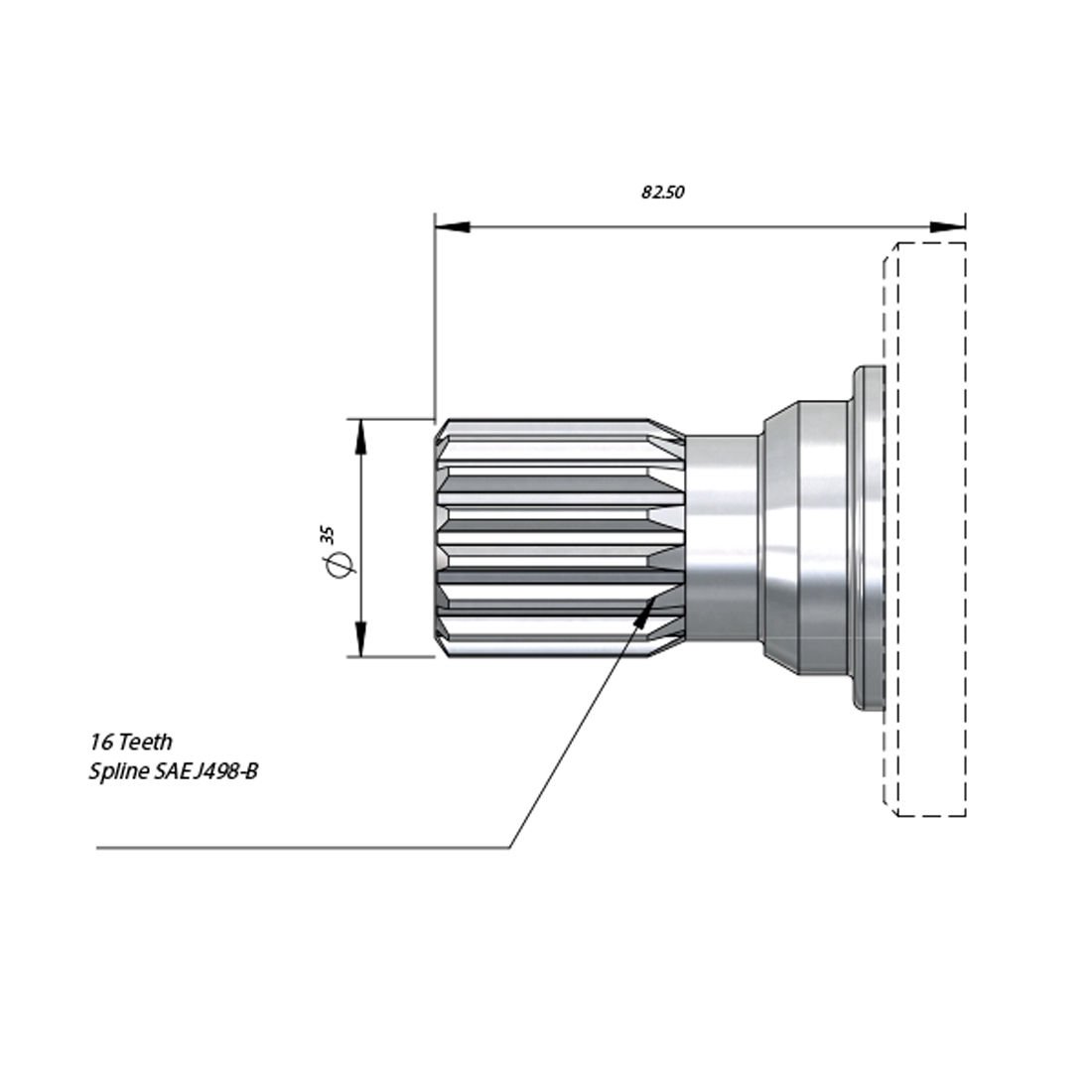

Available Shaft Types
K9
K12
Technical Specifications
| Product Code | Displacement (cm3 / rev) | Max. Cont. Pressure (%100) (bar) | Max. Peak. Pressure (6 sec.max.)(bar) | Max. Cont. Speed (rpm) | Inlet | Outlet | Direction | |
|---|---|---|---|---|---|---|---|---|
| 22577063 | 63 | 280 | 330 | 1800 | G1" | G3/4" | CCW Left | |
| 22578063 | 63 | 280 | 330 | 1800 | G1" | G3/4" | CW Right | |
| 22579063 | 63 | 280 | 330 | 1800 | G1" | G3/4" | Bi-Directional | |
| 22577073 | 73 | 275 | 320 | 1800 | G1 1/4" | G3/4" | CCW Left | |
| 22578073 | 73 | 275 | 320 | 1800 | G1 1/4" | G3/4" | CW Right | |
| 22579073 | 73 | 275 | 320 | 1800 | G1 1/4" | G3/4" | Bi-Directional | |
| 22577087 | 87 | 265 | 300 | 1800 | G1 1/4" | G1" | CCW Left | |
| 22578087 | 87 | 265 | 300 | 1800 | G1 1/4" | G1" | CW Right | |
| 22579087 | 87 | 265 | 300 | 1800 | G1 1/4" | G1" | Bi-Directional | |
| 22577109 | 109 | 240 | 285 | 1800 | G1 1/4" | G1" | CCW Left | |
| 22578109 | 109 | 240 | 285 | 1800 | G1 1/4" | G1" | CW Right | |
| 22579109 | 109 | 240 | 285 | 1800 | G1 1/4" | G1" | Bi-Directional | |
| 22577133 | 133 | 230 | 270 | 1500 | G1 1/2" | G1" | CCW Left | |
| 22578133 | 133 | 230 | 270 | 1500 | G1 1/2" | G1" | CW Right | |
| 22579133 | 133 | 230 | 270 | 1500 | G1 1/2" | G1" | Bi-Directional | |
| 22577151 | 151 | 180 | 230 | 1500 | G1 1/2" | G1" | CCW Left | |
| 22578151 | 151 | 180 | 230 | 1500 | G1 1/2" | G1" | CW Right | |
| 22579151 | 151 | 180 | 230 | 1500 | G1 1/2" | G1" | Bi-Directional |
